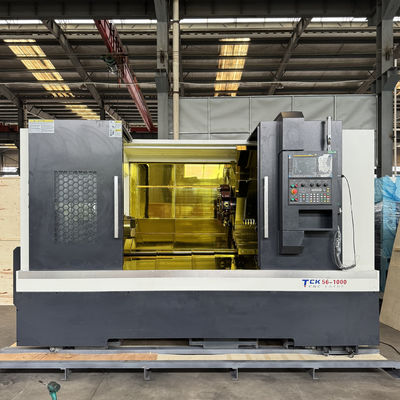

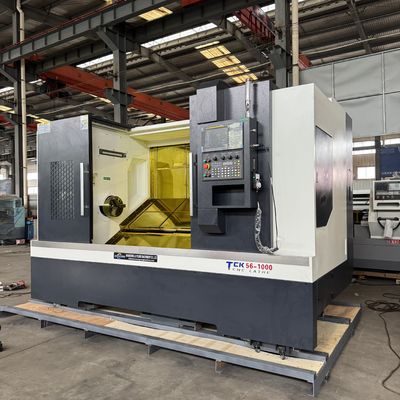

Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine

Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine

Duży Obraz :  Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: HR
Orzecznictwo: CE ISO
Numer modelu: TCK56
Zapłata:
Minimalne zamówienie: 1set
Cena: usd 19000-40000
Szczegóły pakowania: Standardowy pakiet eksportu
Czas dostawy: 30 dni
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, Moneygram
Możliwość Supply: 40 zestawów/miesiąc
Kontakt

Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine

Opis
Parametr: TCK56 Max przechyla się nad łóżkiem Dia.: Φ560
Maksymalny przechylenie na przekroju Dia.: Φ330 Maksymalna długość cięcia ((mm): 500
Przejazd oś X ((mm): 270 Przejazd oś Z ((mm): 700
Prędkość zasilająca osi X、Z ((m/min): 30/36 Węzeł węzłowy Dia ((mm): Φ62
Podkreślić:

high precision CNC lathe machine

,

slant bed metal lathe

,

factory direct CNC lathe

Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine
Product Introduction
The TCK56 Chinese high quality hot sales CNC slant bed cnc lathe machine cnc bar automatic lathe product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine 0
Item
parameter
TCK56
Processing range
Max swing over bed Dia.(mm)
Φ560
Max swing over cross slide Dia.(mm)
Φ330
Max cutting length(mm)
500
Travel and feed
X axis travel(mm)
270
Z axis travel(mm)
700
X,Z axis feed speed(m/min)
30/36
X/Z axis feed motor powr(kw)
2.4
positional accuracy
X/Z axis repeated positioning accuracy


0.005/0.006
X/Z-axis positioning accuracy(mm)
0.01/0.015
Spindle
Spindle speed(rpm)
10-3000rpm
Spindle nose
JISA2-6
Spindle bore Dia(mm)
Φ62
Chuck
8” hydraulic chuck
Main motor(kw)
11/15KW

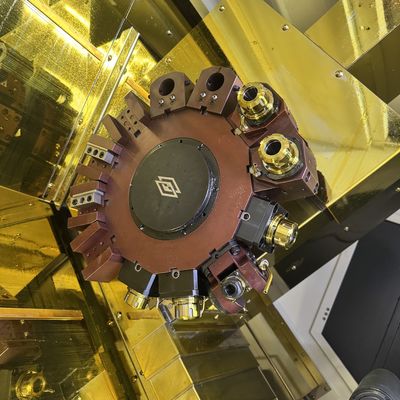

Turret
No.of tool holder
12 station
Y axis travel (mm)
90
Tool change time(s)
0.2
Tools size(mm)
20×20
Boring tool size(mm)
Φ32
Tail stock
Tailstock travel(mm)
440
taper of center
MT.NO.4
cooling system
Coolant capacity(L)
150
Dimensions
L*W*H(mm)
2318´1585´1770
weight
Machine weight(kg)
4500KG
Details Images
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine 1

HT300 integrated bed Using HT300 cast iron, the internal reinforcing ribs are arranged reasonably, with high strength and good shock absorption,ensuring more stable stress during load cutting. making the basic components of the machine tool highly rigid and ensuring the stability of the machine tool for long-term use.
Intelligent distribution board The protective switchgear is equipped with intelligent chips and fault code display, making it easy to quickly read and diagnose faults.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine 2
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine 3
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine 4
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. We are located in shandong provice.We are one of professional cnc lathe machine, cnc milling machine and swiss lathe machine manufacturer in china.We founded our fast lathe machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine for over 20 years development,we build three factories.One is for cnc lathe production one for cnc milling production. We imported advanced production technology and R&D team from Korean in 2001 and build our third factory forswiss lathe machine production.We own about 500 wokers and 40 engineers, more than 5000 square meter .
Factory Direct Sales TCK56 Lathe Machine for Metal High Precision High Speed Slant Bed Cnc Lathe Machine 5
