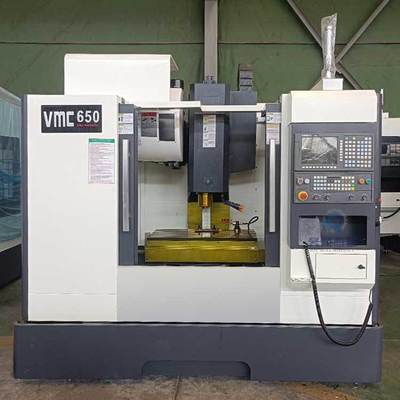

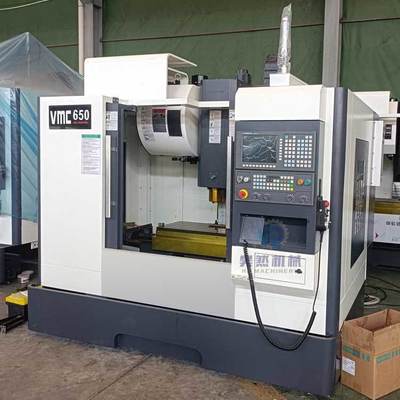

3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size

3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size

Duży Obraz :  3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: HR
Orzecznictwo: ceiso
Numer modelu: VMC650
Zapłata:
Minimalne zamówienie: 1set
Cena: usd 19000-40000
Szczegóły pakowania: standardowy pakiet eksportowy (obudowa ze sklejki)
Czas dostawy: 30 dni
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, Moneygram
Możliwość Supply: 40 zestawów/miesiąc
Kontakt

3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size

Opis
Gwarancja: 1 rok Waga: 3100 kg
Stan: Nowy Typ: Pionowy
Woltaż: 380 V 50 Hz Moc (w): 7,5 kW
Wrzeciono: Tajwańskie wrzeciono 10000 obr./min Zwężenie wrzeciona: BT40
Podkreślić:

24 Tool Magazine CNC Vertical Machining Center

,

5-6 Seconds Tool Change Time Vertical Milling Machine

,

800x300 Table Size VMC650

3 AXIS cnc vertical machining center vmc650 CNC vertical milling machine
Product Description
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 0
Model
Vmc640
VMC650
VMC840
VMC850
VMC855
Table size (mm)
800*300
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
400
300
500
500
X-axis stroke (mm)
600
650
800
800
800
Y-axis travel (mm)
400
400
400
500
550
Z-axis travel (mm)
450
550
550
500
550
T-slot
3-18-120
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
460
485
445
552
590
spindle end face to work table (mm)
120-670 mm
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
24/24/18mm
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3000
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800

Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000
CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center
Detailed description
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 1



MACHINE CONSTRUCT High strength high quality HT300 cast iron,
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 2



Taiwan spindle-10000 rpm
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 3



1.Taiwan OKADA arm 24 tool magazine .
2. tool change time only 5-6 seconds.
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 4



Controller system The standard is GSK controller system, the optional is fanuc Siemen,or Syntec controller system.
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 5



SCREW 1 Taiwan brand lead screw, 2. lead screw bearing using SKF or NACHI bearing,
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 6



SCHNEIDER ELECTRICAL COMPONENTS with Schneider safety electrical components
Packing & Delivery
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 7
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size 8

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
